Stripper Ejector Construction (step by step mold design) part 7

Ejector Guide Pin and Bush
in this part, we will design ejector guide pin, EGP bush, bolts for stripper plate and bottom plate. first learn ejector system and part at link below

3D ejector drawing

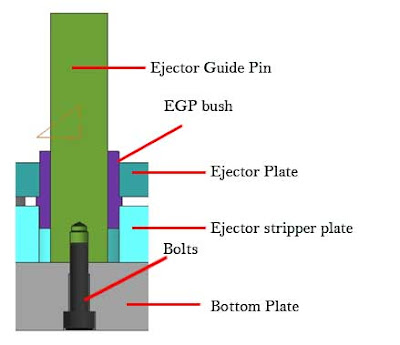

hope you can understand ejector system and ejector guide pin (EGP) function, Ejector guide pin located between ejector plate and ejector stripper plate, to fit the ejector pin, we can add bolt at the bottom of EGP, and clamp it in bottom plate of mold



Bolt for spacer block
To make position of spacer block fit between backing support plate or core plate and bottom plate, add bolts from bottom plate to spacer block, see picture below for more detail. In each spacer block, add 2 pcs of bolts, the other function is when disassembling process spacer block and bottom plate became one part, it make dissembling easier




Ejector Puller Bolts
to push the stripper plate when ejecting proses begin, we need connector from ejector plate to stripper plate at core,in this case, i use ejector puller bolts, you also can use other standard part,just make sure that you can connect ejector plate to stripper plate at core side. see picture below for detail construction.
